Automatic menu of tables (AAF)
Each Table control found in a window proposes a menu to the user. This menu, available without programming, proposes several actions: - Export to Word or to OpenOffice (depending on the software installed on the user computer).
- Export to Excel or to OpenOffice Calc (depending on the software installed on the user computer).
- Export to XML.
- Copy the row or the table.
- Create a chart for representing data.
- Print the table (see AAF for printing a table).
- Select several table columns:
To simplify the menu, only the first 32 columns are visible in the menu. Furthermore, only the columns with a title are proposed.

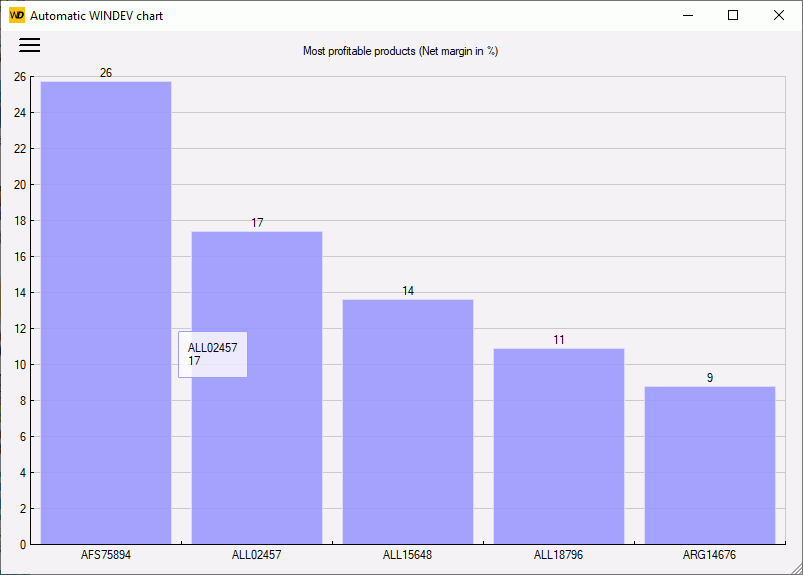

Example of chart automatically generated by the context menu of a Table control:
This menu allows the user to easily perform several processes not necessarily planned in the application: - Export to an external Excel, Word or XML file.
- Ability to display or hide the columns (to limit the size of the menu, only the first 32 columns are displayed).
- Automatically generate a chart from the data found in a table.
Remark: you cannot select the columns that will be included in the chart. To choose some specific table columns, we advise you to create a new chart from the Table control displayed in a window.
Remarks: - You can add options to this menu from the code. To do so, use the PopupMenu property.
- When exporting a table via the popup menu, the merge of columns is ignored.
- Horizontal table: The menu of AAFs does not contain the options used to perform an export to an external Excel, Word or XML file.
Configuring the automatic menu in a Table control The popup menu of a Table control can be disabled. To configure the display of the Table control popup menu, you must: - Open the Table control description window.
- Select the "UI" tab.
- Choose the desired menu in the "Popup Menu" combo box. You can:
- "Display the menu of AAF (System)": In this case, the popup menu displayed will be Table control automatic menu (Menu of AAFs). For more details on how to configure this menu, see Configuring the AAF menu.
- "Add a context menu": If this option is checked, you can select the custom context menu to be displayed.
Remarks: - If both options are checked, the custom context menu can be added before or after the AAF menu.
- If no option is selected, no context menu will be selected. The <Disabled> option will be displayed in the description window.
- The PopupMenu property is also used to remove the AAF-specific context menu and restore the standard Windows menu for a given control.
|
|
|
|
