The "Wizards, Examples and Components" pane
Warning
From version 21 (51), the pane is not available anymore. It was replaced by two new panes:
Overview

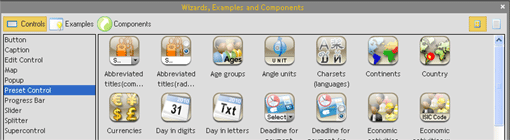

The "Wizards, Examples and Components" pane proposes several examples classified according to their category:
  • Control examples ("Controls" button): These controls can be included in the current window or in the current page by "Drag and Drop".
  • Examples presenting the features of the product as well as full examples ("Examples" button). Several types of examples are available, especially:
    • WINDEV In WINDEV and WEBDEV:
      • the full examples: these examples are real applications presenting one or more features.
      • the component examples: these examples use the external component supplied with WINDEV, WEBDEV and WINDEV Mobile.
      • the training examples: these examples include several windows and they explain how to use a specific feature.
      • the unit examples: these examples include a window or a page and they allow you to easily understand how to use a specific function or a family of functions.
    • To open the examples, you must:
      • select "Open" from the popup menu.
      • perform Drag and Drop toward the editor.
      Versions 18 and later
      These examples (except for the training examples) are also available from the home window of the product used.
      New in version 18
      These examples (except for the training examples) are also available from the home window of the product used.
      These examples (except for the training examples) are also available from the home window of the product used.
  • External components and list of custom components found in the "My Projects"/"My Mobile Projects"/"My Sites" sub-directory ("Components" button). These external components can be included in the current project by Drag and Drop. See Managing the external components from the "Wizards, Examples and Components" pane for more details.
  • Elements found in the user dictionary ("User" button). This dictionary was defined in the options of WINDEV/WEBDEV/WINDEV Mobile. See User dictionary for more details.
Displaying the "Wizards, Examples and Components" pane
To display the "Wizards, Examples and Components" pane, select "Tools .. Options .. Options of the environment", "Panes" tab and check "Wizards, Examples and Components".To display the "Wizards, Examples and Components" pane, on the "Home" pane, in the "Environment" group, expand "Panes" and select "Wizards, Examples and Components".

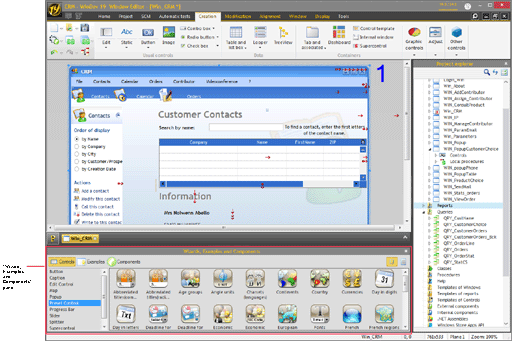

For example:
See Handling the dockable panes for more details.
See also
Minimum version required
  • Version 14
