Common problems
"Unable to add the programming" error during the remote setup of a site (via FTP)
The following error may occur during the remote setup of a site on a Windows 2008 server on which the UAC mechanism of Windows is enabled:
Unable to add schedule due to the following error:
Unable to run the 'C:\WEBDEV29\WD290Admin.exe /DELAYEDUPD /DATE=201101260949 /CMD="/INSTALL/ADDALIAS/SITENAME/domain.com/"' executable for the following reason:
The requested operation requires an elevation.
When this error occurs, the site setup is performed at 95% on the server: only the setting of Web server (IIS) was not performed. If the WEBDEV administrator is manually started on the server, the name of your site will be displayed in the list of sites.
To fix this configuration problem, the setting of Web server must be "manually" forced for your site. To do so, see "Checking the configuration". The diagnostic of your site will detect this configuration error of Web server and it will propose to repair it automatically.
Reminder about the UAC mechanism (User Account Control):
With the UAC mechanism of Windows, each executable is run with the privileges granted to its parent without possibility to elevate these privileges. Furthermore, the shell (iexplore) is started with a "filtered token" (for the administrators), which means that it has the rights but not the privileges.
Therefore, an application started in an administrator session will not have the administrator privileges and it will not be able to write into the registry of "HKEY_LOCAL_MACHINE" branch. If the application start requires an elevation of rights (like the WEBDEV administrator), Windows displays a confirmation dialog box (mandatory), with eventually the input of a login and administrator password if the current account is not administrator. When the start is performed by another application, no dialog box is displayed but the start fails: this is what happens here.

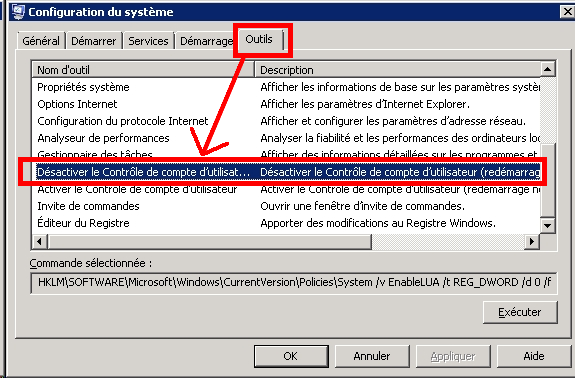

To avoid this error, the UAC must be disabled. To disable the UAC, a simple method consists in running MSCONFIG.EXE (Start .. Run, then type MSConfig.exe). Then, in the MSConfig window, go to the "Tools" tab and select "Disable User Account Control" (Caution: you must reboot the computer).
"WDMetabase.dll: Meta_bInit failed" error or failure updating the meta base with IIS7
This error occurs when the compatibility of metabase IIS 6 is missing from the IIS configuration.
To fix this error, see:
Checking configuration
For any problem, check the configuration from the interface of WEBDEV administrator in the "Advanced" tab.
  1. In the "Host name/IP" controls, specify the domain name of your site. The next operations will be performed on this address, make sure that it is the address of virtual server to check. If there is a single virtual server, leave "localhost" in the control in order for the test to use the default site.
  2. Click the "Diagnostic" button.
  3. To check the server configuration, check "General configuration of WEBDEV Application Server". Then, click "Start the check"
  4. To check the configuration of a specific site, select the name of site to check in the combo box and click "Start the check".
  5. The WEBDEV administrator detects the problems and proposes to fix them automatically.
HTTP error 404 the diagnostic on AWP
In case of HTTP 404 error on the AWP protocol (or on the HTTP://Server/WD290AWP/WD290Awp,exe/VERSION URL), check whether the WEBDEV CGIs are allowed.

In Windows 2008

In the IIS console (started by "Inetmgr" from the Windows Start menu), select:
  • the computer in the treeview (on the left),
  • the "Restriction of requests" icon (on the right).
    Make sure that the CGIs of WEBDEV Application Server are found in the list. These elements must be "Authorized". Otherwise, these elements must be added.

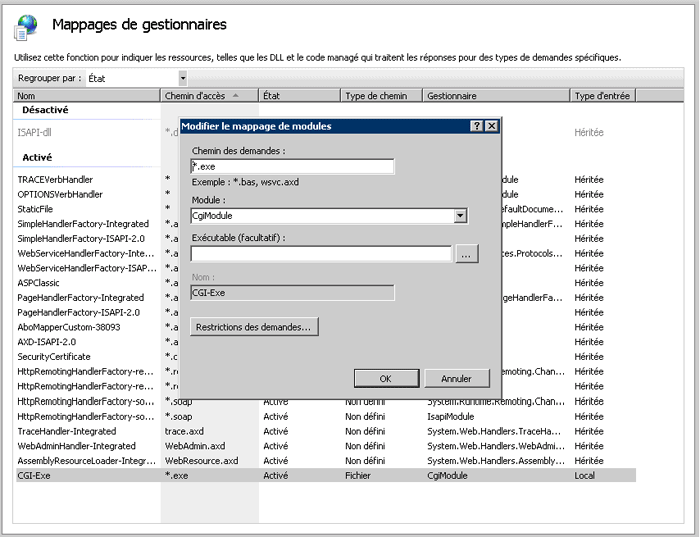

On the virtual site, check in the "Handler mappings" section whether the CGI executables are allowed. Otherwise, add these elements (during the addition, check "Execution" in the "Restriction of requests", "Access" tab):
Problem while displaying the images and the styles
Problem: The site is started but the images are not displayed. The styles are not correct: JavaScript errors occur on the pages. Some actions do not operate.
Solution: The site alias (virtual directory) is not defined or it is incorrect. Use the site diagnostic from the WEBDEV administrator. You can also:
  • start the IIS console ("Inetmgr" from the Start menu of Windows)
  • check whether the alias named liked the _WEB site is found and whether it is not in error.
The Active WEBDEV Pages do not operate
Problem: The association between the AWP extension and the WEBDEV Application Server is not defined.
Solution: Use the diagnostic of application server from the WEBDEV administrator.
The URL rewriting of Active WEBDEV Pages does not operate
Problem: The association between the AWP extension and the WEBDEV Application Server is not defined properly.
Solution: Use the diagnostic of application server from the WEBDEV administrator.
Caution:
  • The site must have been deployed at least once by a setup (physical media or FTP) in order for the WEBDEV Application Server to have been configured (no simple manual copy).
  • The directory corresponding to the path of rewritten URL, a ".WDConfig.awp" file (that contains information about the site name, such as: SITEID * <SiteName>) must be found.
  • If the URL contains characters (such as +), some Web servers may consider that it is a double escape and trigger an HTTP 404 error (or an HTTP 404.11 error). In this case, the Web server must be configured to allow the double escape.
    For example, for IIS 7 (2008): On the Web site, go to "Filtering the requests", then "Modify the function parameters..." and check "Allow the double escape".
The short URLs of dynamic sites do not operate
Problem: IIS 6 is not supported in Windows 2000 or 2003. The association between the AWP extension and the WEBDEV application server is not defined properly.
Solution: Use the diagnostic of application server from the WEBDEV administrator.
The access to the network data does not operate
Problem: The site cannot access the data found on another computer. The Windows account that runs the site is a local guest account, therefore without any possibility to access the network shares.
Solution: To access the network resources, change the Windows account associated with the virtual Web site and implement a domain account.
The URL with just the domain name does not start the WEBDEV site
Once the WEBDEV site is deployed, the URL with the domain name must directly redirect to the WEBDEV site.

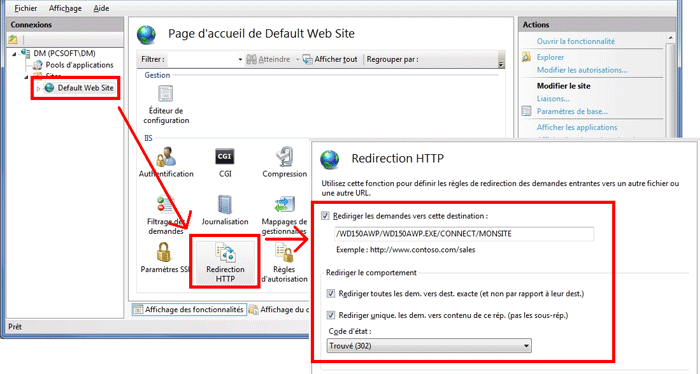

With IIS 7 in Windows 2008, you can specify a redirection rule, for example the address of the desired dynamic WEBDEV site:
Special cases: Display static or Active WEBDEV Pages with root domain only:

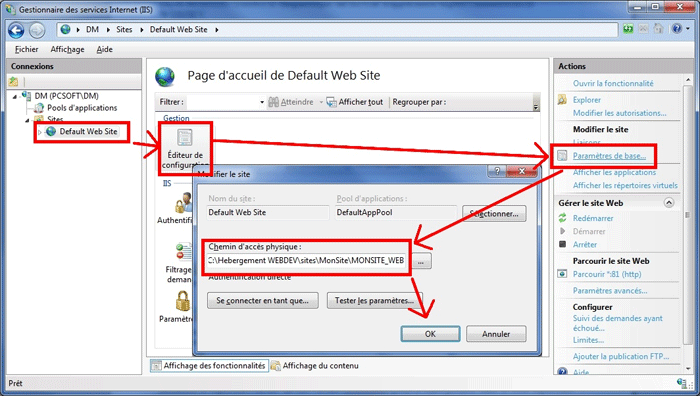

  1. Modify the base directory of the virtual site (wwwroot). This base directory must point to the _WEB subdirectory of the desired WEBDEV site. If the site supports only one language, it is possible to point to the language subdirectory. Example with IIS 7 in Windows 2008:
  2. Specify the default page (Default.html or index.htm). Use:
    • a page that redirects to the URL of dynamic site
    • your static home page if you have one (the name given by WEBDEV is correct by default).
      Remark: If your first page is an awp page, make sure that its name corresponds to the name of a default document of Web site.
Let's see some methods to create a page that opens or redirects to a dynamic WEBDEV site:
  • In the static home page of WEBDEV site, type the following code in the onload code of the page:
    DynamicSiteDisplay("MYSITE")
  • Example of HTML code for a static "index.htm" page with FrameSet. With this type of page, the URL displayed by the browser will remain unchanged (only the domain name) even when navigating in the site. This example is not suitable for a site with .awp pages or for which a lot of SEO is required:
    <html>
    <head>
    <title>My site</title>
    <meta name="url" content="/WD290AWP/WD290AWP.EXE/CONNECT/MONSITE">
    <meta name="robots" content="all">
    </head>
    <frameset rows="100%,0" frameborder=no border=0>
    <frame name="SITE" src="/WD290AWP/WD290AWP.EXE/CONNECT/MONSITE">
    <frame name="NONE" src="" scrolling="no" noresize>
    <noframes>
    <body><a href="/WD290AWP/WD290AWP.EXE/CONNECT/MONSITE">
    Your browser does not support the frames, click here to start the site</a>
    </body>
    </noframes>
    </frameset>
    </html>
  • Example of HTML code for a static "index.htm" page for redirection by meta tag:
    <html>
    <head>
    <title>My site</title>
    <meta name="url" content="/WD290AWP/WD290AWP.EXE/CONNECT/MONSITE">
    <meta http-equiv="refresh" content="0;URL=/WD290AWP/WD290AWP.EXE/CONNECT/MONSITE">
    <meta name="robots" content="all">
    </head>
    <body><a href="/WD290AWP/WD290AWP.EXE/CONNECT/MONSITE">
          The site is loading, click here to force a reload</a>
    </body>
    </html>
Minimum version required
  • Version 23
