The action plans group all actions that will be performed by the software factory. An editor of action plans is used to easily define these actions. It is used to define the sequence of actions to be performed automatically. Action plans are created from WINDEV, WEBDEV or WINDEV Mobile. Creating an action plan To create an action plan: - Open the project for which an action plan must be created.
Note An action plan is not necessarily linked to a single project, since it can be used for several projects. However, a project must be used to create an action plan. You also have the ability to create an "Action plan" project. - Click
in the quick access buttons. - The window for creating a new element appears: click on "Automation", then on "Action plan".
- The wizard for creating a project configuration is automatically started on the current project.
- In the wizard, specify:
- the name and description of the action plan.
- the elements included in the action plan. In most cases, no element must be included in the action plan. This plan allows you to include elements used by a specific action of the action plan (procedure used by a WLanguage action for example).
- Validate the creation of project configuration.
- A default action plan is generated and it is displayed in the editor of action plans.
- Save the action plan (Ctrl + S). The action plan corresponds to a file with a "wpa" extension. The action plan is displayed in the project explorer.
Describing an action plan The editor of action plans is as follows:
1 Action plan name. The "Description" option of the context menu is used to: - modify the name of the action plan.
- specify the parameters of the action plan.
2 List of actions that can be carried out under the action plan. To add an action to the action plan, all you have to do is "drop" an action into the list of actions of the plan. The action will be included at the location hovered by the mouse cursor when the action is dropped. The context menu of the action is used to: - Display the description window of the action. This window is used to specify the necessary parameters (the name of the project to open for example) and to manage the errors and the persons affected by the status report.
- Move up, move down or delete the action.
3 List of actions in the action plan. 4 Action taken in the event of an error. This operating mode was defined in the action configuration window. Characteristics of the actions Action with parameters An action may require parameters. For example, the action called "Open a project from SCM" requires the name of the project to open. The definition of these parameters is performed in the "General" tab of the description window of the action ("Description" in the context menu of the action). The parameters can be defined: - As a "fixed" value: the value is specified directly in the action plan.
- As parameters passed during the execution of the action plan.
This parameter will be required to run the action plan. For the name of the project to open, it must be specified as parameter by the developer. Tip Whenever possible, it is advisable to use parameters when creating action plans, so that they can be reused for different projects. Managing the failures and errors An important part of the action plan: defining what to do if the action fails. A simple example: what to do when updating a window that has been extracted exclusively by a developer. The management mode of errors that is the most consistent with the action is selected by default. You also have the ability to customize it. Let's take a look at the possible management modes of errors: - Stop the execution of the action plan and save the error in the status report.
This management mode is reserved for the major errors (for example, a project that failed to open): there is no need to try to continue. - Run the custom error process of the action plan.
This management mode allows you to manage a specific error mechanism. For example, send an SMS if an error occurs. - Save the error in the status report and continue the execution.
This management mode allows you to continue the execution of the action plan even if an error occurs. For example, if a component is not updated (offline server, etc.), the action plan can continue. - Save for information but do not generate any error.
For example, when the audit detects that unused files are found in the project directory, this is not an error but it may be important to have this information.
If the action fails, you have the ability to select one or more persons to inform ("Message" tab of the description window of the action). In any case, the owner of the action plan is informed of the execution result (success or failure). Tip To obtain all potential errors in a project, you can use the "Record error in report and continue" mode and a special action: "Stop execution in case of error". For example, if the synchronization of the templates is not performed, the error is saved and the action plan continues to run. In the rest of the action plan, if the recompilation detects some UI errors, these errors will be stored. Therefore, all the project errors are found in a single execution of the action plan. Special case: carrying out a procedure as part of an action plan: Depending on the result of the procedure, the action plan must be interrupted. The following code must be used in the WLanguage procedure: IF bRes = False THEN
sErrorMessage is string = "Error in XXX function" + CR + ...
ErrorInfo(errSystemMessage)
ExceptionThrow(1, sErrorMessage)
END

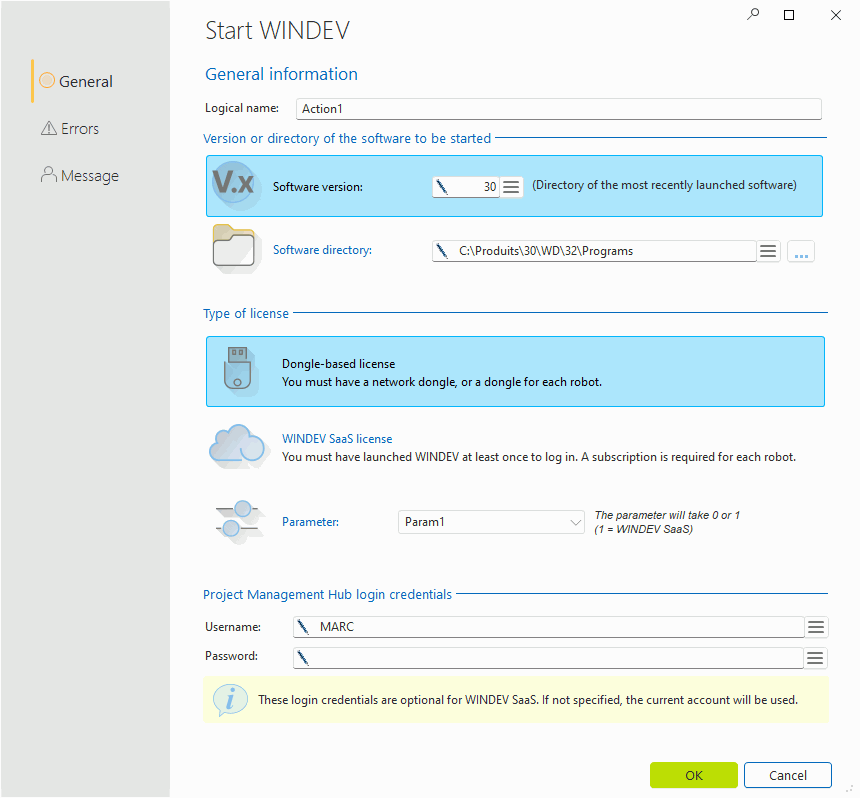

New in version 2025Specific action: Launch of WINDEV, WEBDEV or WINDEV Mobile The action for launching the product via an action plan for the software factory contains several parameters in the "General" tab of the description window:
- Version and directory of the product to be launched.
- The type of license used: license with physical key or SaaS license.
- Project Management Hub user name and password.
In the case of a license with a physical key, each automation device must have a local physical key or a network key.
SaaS Exclusivity
In the case of a SaaS license, the license is the one already in use on the workstations running the PLCs. Therefore, you must: - have a SaaS license for each automation device.
- have launched the required product at least once on the automation to log in with the corresponding subscription credentials.
- connect to Control Centers using this license.
Specific action: Implementation of an action plan You can run an action plan from another action plan. This action may be useful to share the operations common to the WINDEV, WEBDEV and WINDEV Mobile projects. For example, a specific action plan can be used to start WINDEV, WEBDEV or WINDEV Mobile according to a parameter. The useless actions can be disabled by apDisableAction. In this case: - The action plan contains the 3 startups of the products.
- The initialization code of the action plan is as follows:
SWITCH pProductName
CASE ~= "WD"
apDisableAction(Start_WEBDEV)
apDisableAction(Start_WINDEV_Mobile)
CASE ~= "WB"
apDisableAction(Start_WINDEV)
apDisableAction(Start_WINDEV_Mobile)
CASE ~= "WM"
apDisableAction(Start_WINDEV)
apDisableAction(Start_WEBDEV)
OTHER CASE
ExceptionThrow(1, "This type of project is not associated with a product")
END
WLanguage events associated with an action plan Two events associated with an action plan: | | Event | Runtime condition |
---|
Initialization of action plan | Run before the execution of action plan. | End of action plan | Run after the execution of action plan. |
WINDEV allows you to perform a "Go" of an action plan in order to check its operating mode locally, especially the custom actions containing WLanguage code.
